Description

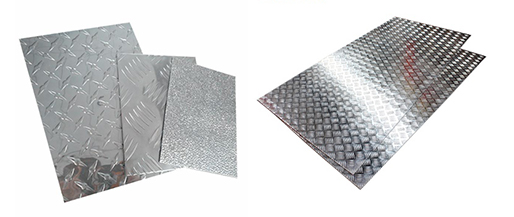

Aluminum Tread Plate (also known as diamond plate or checker plate) is a type of aluminum rolled plate that has a raised diamond or linear pattern on one side and is smooth on the other side. Because of its unique texture, it is often used to make walkways and ramps, where slipping is likely to occur. It is also very commonly used for decorative purposes.
Aluminum Tread plate/checkered plate—also known as floor plate, diamond plate, or diamond tread plate—provides a durable,anti-slip surface for dock surfaces, vehicle running boards, and more.
Specification
Aluminum tread plates ccording to the different classification of aluminum sheet alloy.
1, the general tread aluminum alloy plate: 1060 aluminum plate for the plate from the processing of aluminum alloy pattern plate, able to adapt to the normal environment, low prices. Usually cold storage, flooring, packaging and more use of this pattern aluminum sheet.
2,Al-Mn alloy tread plate: 3003 as the main raw material processing, the aluminum plate, also known as rust-proof aluminum, the strength is slightly higher than the ordinary aluminum alloy pattern plate, with a certain anti-rust properties, but the hardness and corrosion resistance Less than 5,000 series of pattern plate, so the product is not strictly used in the anti-rust, such as truck models, cold storage floor.
3, aluminum-magnesium alloy tread plate: 5052 or 5083, such as 5000 series of aluminum as raw material processing, with good corrosion resistance, hardness, anti-rust performance. Usually used in special places, such as ships, cars lights, humid environment, the high hardness of aluminum, a certain load-bearing capacity.
Details include:
ITEM |
ALLOY |
PATTERN |
THICKNESS |
WIDTH |
APPLICATION |
ALUMINIUM
TREAD PLATE |
1000SERIES
3000SERIES
5000SERIES
6000SERIES |
DIAMOND
1 BARS
2 BARS
3 BARS
5 BARS |
0.7MM-11.5MM |
100MM-2000MM |
Trailers
Ramps
Toolboxes
Decorative flooring & walls
Vehicle running boards
Kick plates
Dock surfaces
Stairways |
Application
-
Household
-
Container
-
Printing
-
Medicine
-
Heat sealing
-
Beer Neck
-
Industrial
-
Decoration
